Precision Engineered. Factory Direct.
From CAD model to finished component — CNC machining, mold making, and inspection under one roof. Tight tolerances. Fast turns. Zero ambiguity.
5-axis CNC, wire EDM, injection mold tooling, and CMM validation — all from a single source with full traceability and documented inspection on every order.
What We Do
Capabilities
Every process, under one roof. Clear specs. No surprises. Each capability is documented with real parameters — not marketing language.

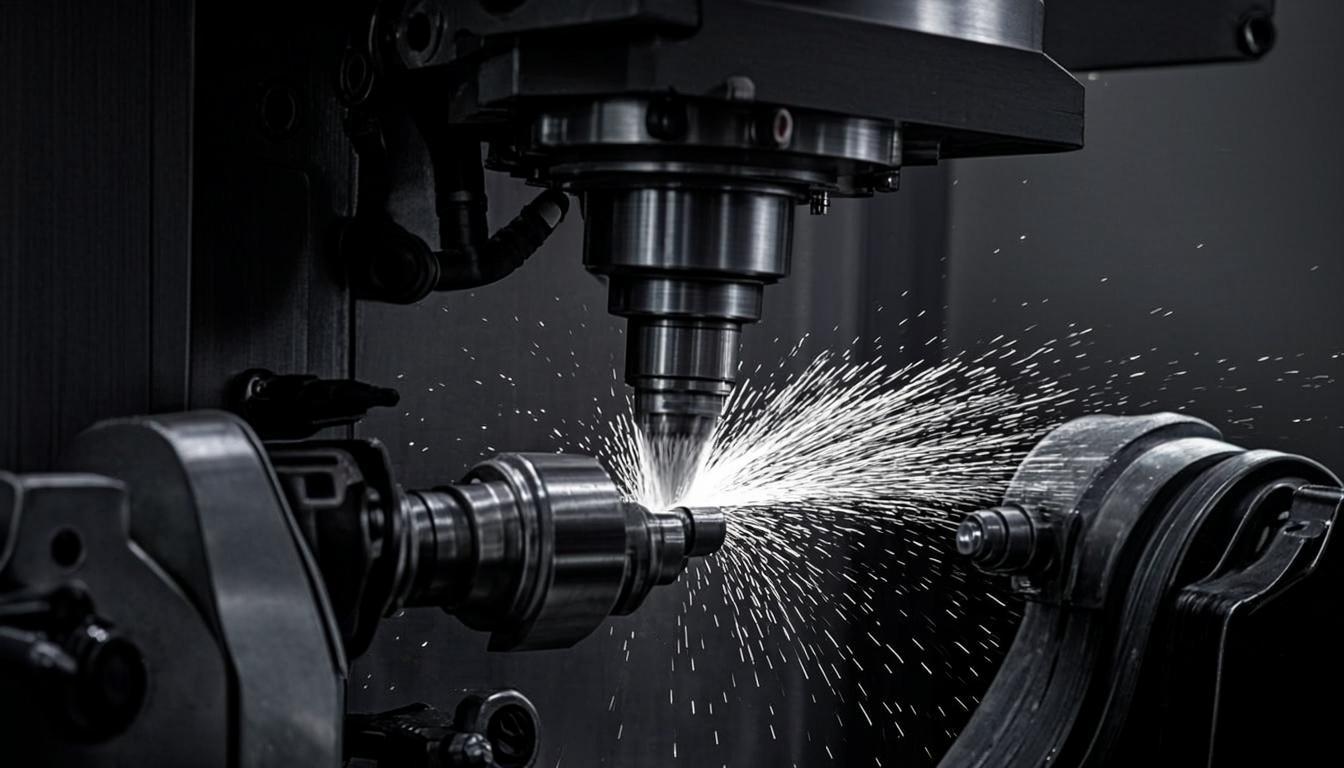

CNC Milling
3, 4, and 5-axis milling with tolerances to ±0.005mm. Aluminum, steel, titanium, and engineering plastics.
- —3-axis: 1200×600×500mm envelope
- —5-axis: DMG MORI DMU 50 — Ø500mm, 400mm Z
- —Spindle speeds to 18,000 RPM
- —Tolerances: ±0.005mm (precision), ±0.01mm (standard)
- —Materials: Al 6061/7075, SS 303/304/316, Ti-6Al-4V, POM, PEEK
CNC Turning
Precision turned components with live tooling. Diameters from 2mm to 300mm with surface finishes to Ra 0.4.
- —CNC lathes with live tooling and sub-spindle
- —Diameter range: Ø2mm – Ø300mm
- —Bar feed capacity: Ø52mm
- —Surface finish: Ra 0.4 standard
- —Threads, grooves, and complex profiles in single setup

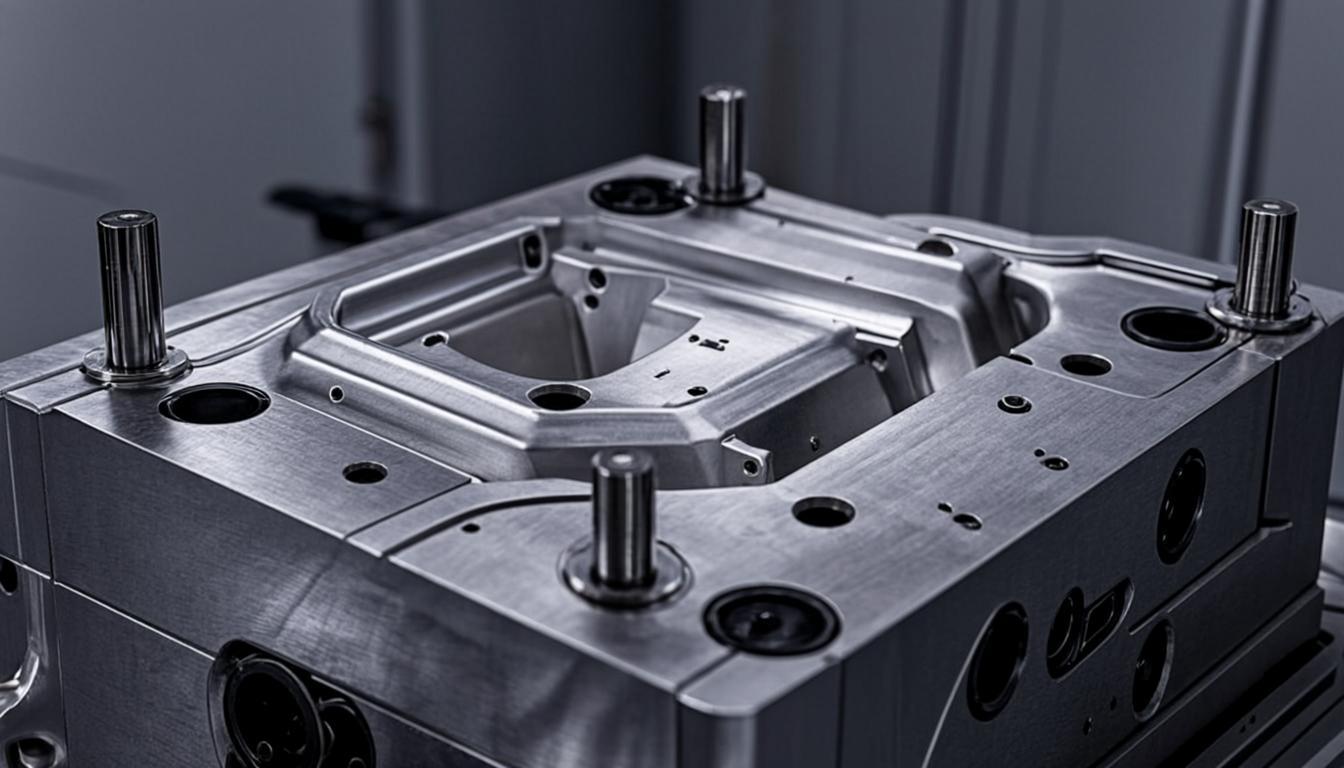

Mold Making
Injection molds, compression molds, and blow molds. Tool steel cavities with polished or textured finishes.
- —Injection, compression, and blow molds
- —Tool steels: H13, P20, S136, NAK80
- —Cavity counts: 1 to 64+ cavities
- —Surface: mirror polish (SPI A1) to textured (MT11010)
- —Mold life: 100K to 1M+ shots depending on class
Surface Treatment
Anodizing, plating, powder coating, bead blasting, and brushing. Full finish specification support.
- —Anodizing: Type II (clear/color) & Type III (hard coat)
- —Plating: zinc, nickel, chrome, electroless nickel
- —Powder coating: custom RAL colors, textured & smooth
- —Bead blast: glass bead and aluminum oxide media
- —Brushing: directional and random patterns
EDM & Wire Cutting
Wire EDM and sinker EDM for complex geometries and hard materials. Accuracy to ±0.003mm.
- —Wire EDM: ±0.003mm accuracy, 0.10mm wire
- —Sinker EDM: deep cavity and rib features
- —Taper cutting up to 30° on wire EDM
- —Hardened steel and carbide processing
- —Surface finish: Ra 0.2 achievable
Assembly & Testing
Sub-assembly, functional testing, and kitting. Integrated quality checks at every stage.
- —Mechanical sub-assembly and integration
- —Functional testing per customer specifications
- —Pressure, leak, and electrical test capability
- —Kitting with custom labeling and packaging
- —Incoming + in-process + final inspection gates
Our Facility
Equipment & Capabilities
Real machines with real specs. Manufacturing buyers deserve to know exactly what equipment will run their parts — not vague capability claims.
CNC Milling
DMG MORI DMU 50
5-axis universal, Ø500mm, HSK-A63, 18,000 RPM
Haas VF-4SS
3-axis, 1270×508×635mm, 12,000 RPM
Mazak VCN-510C
3-axis, 1050×510×510mm, 10,000 RPM
DMG MORI CMX 800 V
3-axis, 1200×600×500mm, 14,000 RPM
CNC Turning
Mazak QT-250
CNC lathe with live tooling, Ø300mm swing, 52mm bar feed
Haas ST-30
CNC lathe with sub-spindle, Ø356mm swing
Citizen L20-XII
Swiss-type, Ø20mm bar capacity, ultra-precision
EDM
Mitsubishi MV2400R
Wire EDM, ±0.003mm accuracy, 0.10mm wire
Makino EDAF3
Sinker EDM, deep cavity and rib capability
Sodick VZ300L
Wire EDM with linear motors, high-speed cutting
Inspection
Zeiss Contura G2
CMM, ±0.0018mm + L/350, Calypso software
Mitutoyo SJ-410
Surface roughness tester, Ra/Rz/Rq, 0.01–40μm
Keyence IM-8000
Instant measurement system, 99+ features in seconds
Range & Experience
Materials & Industries
We process these materials daily and serve these industries with industry-specific quality systems. If your material or industry isn't listed, ask — our engineering team evaluates new materials regularly.
Materials We Process
Aluminum
Steel & Stainless
Titanium
Copper & Brass
Engineering Plastics
Specialty
Industries We Serve
Aerospace & Defense
AS9100D-certified. Brackets, housings, structural components, and tooling.
Medical Devices
ISO 13485-certified. Implants, instrument housings, and FDA-documented production.
Automotive
IATF 16949-certified. Sensor housings, connector molds, and PPAP documentation.
Industrial Equipment
Precision components for pumps, valves, actuators, and measurement systems.
Robotics & Automation
Custom actuators, mounting systems, and high-repeatability linkages.
Electronics & Telecom
EMI shields, thermal management, connector housings, and RF components.
Our Process
How It Works
From your design to delivered parts — a clear, controlled process with inspection gates at every stage and full documentation on delivery.
Upload Your Design
Send STEP, IGES, Parasolid, or SolidWorks files with your requirements. We accept files up to 100MB per upload. Include 2D PDF drawings if available — it speeds up quoting significantly.
Accepted formats: STEP, IGES, XT, SolidWorks, Pro/E, Inventor. Drawings: PDF, DWG.
DFM Review & Quote
Our engineers review manufacturability — checking wall thickness, tolerance stack-ups, feature accessibility, and material suitability. You get a detailed quote within 24 hours with DFM notes included, not just a price.
Every quote includes: unit price, tooling cost (if applicable), lead time, DFM observations, and recommended alternatives.
Production
CNC machining, mold making, or EDM — executed to spec with in-process inspection at setup, mid-run, and completion. Program verification and first-off approval before production begins.
In-process checks: setup verification, mid-run SPC sampling, and final dimensional audit on every run.
Quality Validation
CMM inspection with full dimensional reports on all critical features. First Article Inspection (AS9102-compliant) for new parts. Nothing ships without documented proof of conformance.
Standard: CMM report on critical dims. FAI available on request. PPAP Levels 1–4 for automotive. Full inspection data retained for 7 years.
Delivery & Documentation
Parts arrive with full documentation — CMM inspection reports, material certifications (mill test reports), certificates of conformance, and full traceability. International shipping via DHL/FedEx/UPS.
Standard package: inspection report, material cert, CoC, packing list. Expedited and consolidated shipping available.
Design Support
Design for Manufacturing
Better parts start with better design decisions. We catch issues before they become costly problems — and we back it with specific examples, not vague advice.
Wall Thickness, Draft Angles & Fillets
Recommendations for optimal geometry that machines cleanly and molds reliably. We catch thin walls that cause fill issues, missing drafts that increase ejection force, and sharp corners that concentrate stress.
Example: A 0.8mm wall in PA66-GF30 will warp during ejection. We recommend 1.2mm minimum with 1° draft per side — before tooling starts.
Material Selection Guidance
Based on function and cost — we help you pick the right grade, not just the most expensive one. Aluminum 6061 vs 7075, PEEK vs PEI, SS316 vs SS303 — the right choice depends on load, environment, and machinability.
Example: 7075-T6 costs 40% more than 6061-T6 but offers 2x the tensile strength — unnecessary for non-structural brackets.
Tolerance Optimization
We flag over-specified dims that drive cost without adding value — and tighten what actually matters. A blanket ±0.01mm on every feature can double your part cost. We identify which features need precision and which can be opened up safely.
Example: Opening non-mating faces from ±0.01mm to ±0.05mm typically reduces machining cost by 25-35% with zero functional impact.
Feature Accessibility Review
Machining and molding feature checks to ensure tool access and clean release. Undercuts, deep pockets, and tight radii that require special tooling or EDM are flagged early — with alternatives.
Example: A 2mm radius in a 30mm deep pocket requires a long-reach tool with high deflection risk. We recommend 3mm minimum or add a tool access slot.
Cost & Lead Time Reduction
Early DFM feedback reduces iterations, lead time, and unit cost by 15–40%. Every design revision after tooling starts costs 5-10x more than catching it during the review phase. Our DFM process eliminates that waste.
Typical savings: 15-40% unit cost reduction, 30% fewer revisions, 1-2 weeks shorter development cycle.
Risk Identification
We identify critical-to-quality (CTQ) features early and recommend inspection strategies. Features with high scrap risk — thin walls, tight position tolerances, small threads — get flagged with mitigation options before production.
Example: M2 threads in stainless steel have 15-20% tap breakage risk. We recommend thread milling or helicoil inserts for production runs.
DFM Impact — By the Numbers
Standards
Tolerance & Quality
Tolerance isn't just a number — it's a cost driver, a risk factor, and a trust signal. We take it seriously, and we help you make informed decisions about every dimension on your drawing.

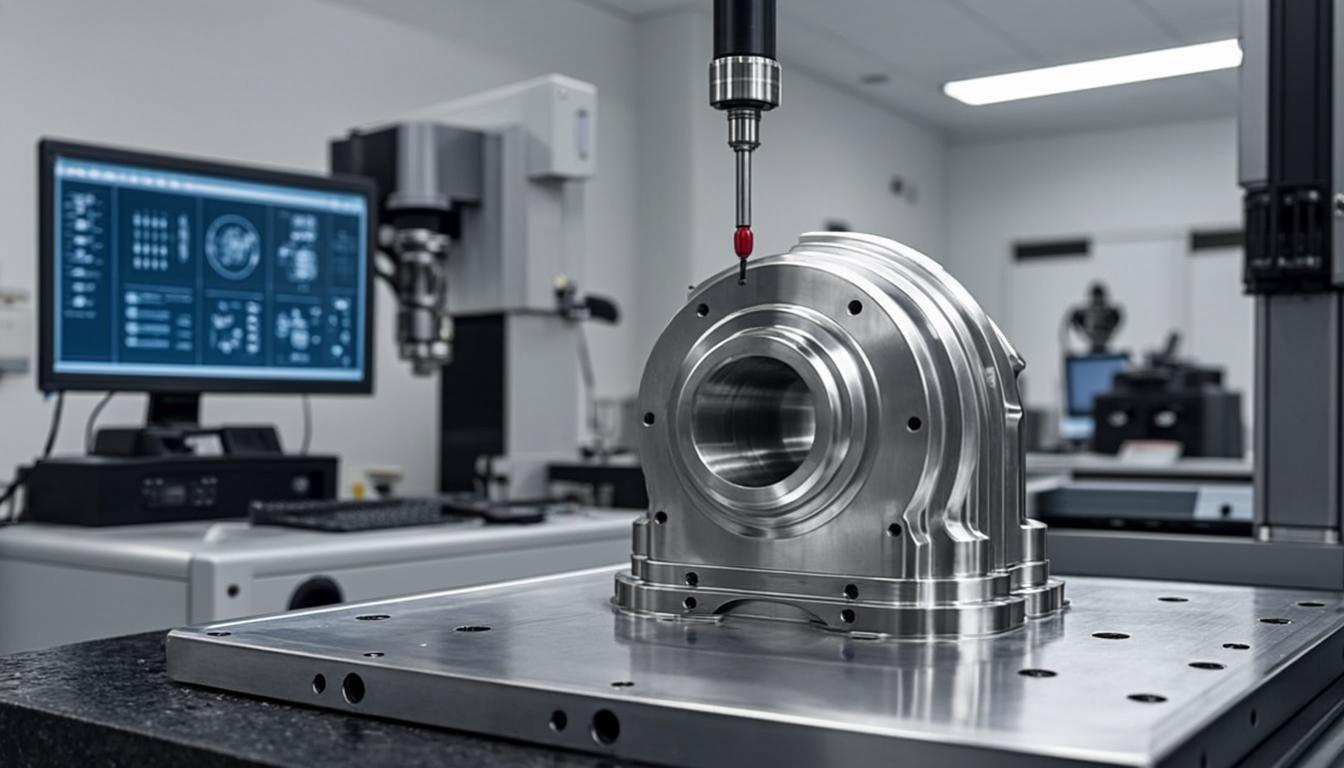

CMM inspection in progress — every critical dimension verified against drawing specifications
Standard Tolerances
±0.05mm for general features, ±0.01mm for critical dimensions, ±0.005mm for precision features on request.
Surface Finish
Ra 0.4 to Ra 3.2 standard range, mirror polish available for mold cavities.
GD&T Compliance
Full geometric dimensioning and tolerancing per ASME Y14.5-2018.
Cost Impact
Tighter tolerances increase cost exponentially. We help you specify what matters and relax what doesn't.
Tolerance by Process
Not all processes achieve the same precision. Here are the realistic tolerance ranges for each capability — what we quote is what we deliver.
| Process | General | Precision | Surface |
|---|---|---|---|
| CNC Milling (3-axis) | ±0.05mm | ±0.01mm | Ra 0.8 |
| CNC Milling (5-axis) | ±0.03mm | ±0.005mm | Ra 0.4 |
| CNC Turning | ±0.03mm | ±0.008mm | Ra 0.4 |
| Wire EDM | ±0.01mm | ±0.003mm | Ra 0.2 |
| Sinker EDM | ±0.02mm | ±0.005mm | Ra 0.4 |
| Injection Mold | ±0.10mm | ±0.03mm | SPI A1 |
Tolerance vs. Cost Impact
Tighter tolerances increase cost exponentially. Specifying the right tolerance for each feature is one of the most impactful cost decisions in precision manufacturing.
Our approach: We review every dimension in your drawing and flag where tolerances can be relaxed without affecting function — typically reducing cost by 20-35% on precision parts. We don't just machine to print; we think about why each tolerance exists.
Verification
Inspection & Validation
Trust is earned through documented proof — not claims. Every inspection method below includes specific equipment, measurement ranges, and reporting standards. No vague quality promises.
CMM Inspection
Full dimensional reports on every critical feature using Zeiss Contura CMM with Calypso software. Measurement accuracy: ±0.0018mm + L/350. Reports include actual vs. nominal with GD&T deviation analysis.
First Article Inspection (FAI)
AS9102-compliant FAI reports for new parts and process changes. Form 1 (part number), Form 2 (product), and Form 3 (characteristic) — full documentation for aerospace and medical traceability requirements.
In-Process Checks
Three-gate inspection protocol: setup verification (first-off approval), mid-run SPC sampling (every 25-50 pcs), and final dimensional audit. Catches process drift before it affects delivery quantities or quality.
Surface Roughness Measurement
Mitutoyo SJ-410 profilometer with Ra, Rz, and Rq parameters. Measurement range: 0.01–40μm. Documented per spec — every surface finish callout on your drawing is verified and reported.
Material Certification
Mill test reports (EN 10204 3.1) and full material traceability on every order. Heat number tracking from raw material through finished part. Available for all metals and engineering plastics.
Visual & Dimensional Verification
Photographic documentation of finished parts at 10×–50× magnification. Go/no-go gauging for threads, press-fit diameters, and critical features. Visual inspection per MIL-STD-105E sampling plans.
Our Inspection Commitment
No part ships without documented proof of conformance. We don't rely on operator judgment — every critical dimension is measured, recorded, and reported. If a dimension is out of spec, you'll know before the part leaves our facility, not after it arrives at yours. All inspection data is retained for a minimum of 7 years for full traceability.
Proven Results
Case Studies
Real projects with real challenges, solutions, and outcomes — not generic testimonials. Sorted by what matters to you.
Aerospace Bracket
5-Axis CNC Milling · 7075-T6 Aluminum
Challenge
Tight positional tolerance on four mating surfaces (±0.01mm true position) with intersecting features that required simultaneous 5-axis access. Conventional 3+2 setup would leave tool marks on critical faces.
Solution
Programmed as continuous 5-axis toolpath on DMG MORI DMU 50 with a single setup. Custom fixture with datum reference to machine datum, eliminating setup error stack-up.
- •±0.01mm true position on mating surfaces
- •Type III hard anodize per MIL-A-8625
- •200 units, 3-week delivery
- •FAI per AS9102 Form 1-3
Zero rework. 100% CMM conformance. Repeat order placed for 500 additional units.
Medical Device Housing
Injection Mold + CNC · PEEK
Challenge
Biocompatible PEEK housing with Ra 0.4 surface finish requirement and CNC-machined port features. Material is abrasive and expensive — high scrap risk if molding parameters drift. FDA documentation required.
Solution
Designed 2-cavity mold with conformal cooling for PEEK processing stability. CNC secondary ops on port features with dedicated fixturing. Full DHR (Device History Record) per 21 CFR 820.
- •PEEK OPTIMA-LT1 biocompatible grade
- •Ra 0.4 on all sealing surfaces
- •CNC secondary: port drilling and threading
- •FDA DHR and material traceability
First-pass yield >97%. Full FAI with CMM reports on all 43 critical dimensions. Zero customer quality complaints across 3,000+ units.
Automotive Sensor Housing
Multi-Cavity Mold · PA66-GF30
Challenge
8-cavity mold with overmolded seal groove and tight positional tolerance between features. Glass-filled nylon is abrasive — mold life and dimensional stability over 50K+ annual volume were critical concerns. PPAP Level 3 required.
Solution
H13 hardened tool steel cavities with TiN coating for abrasion resistance. Mold flow analysis optimized gate placement to minimize weld line exposure. SPC monitoring on critical dims across production runs.
- •8-cavity production mold
- •Overmolded NBR seal groove
- •50K annual volume
- •PPAP Level 3 with dimensional results
Cpk >1.67 on all critical dimensions. Zero defect delivery over first 12 months. Tool maintenance schedule established for >500K shot life.
Client Feedback
What Our Clients Say
Specific feedback from engineers and sourcing managers — not generic endorsements. Real numbers, real outcomes.
“We sent a bracket design that had three tolerance callouts tighter than they needed to be. Precision Edge caught it during DFM review, recommended relaxing two of them, and saved us 28% on unit cost — with zero impact on function. That kind of manufacturing insight is why we keep coming back.”
Mark Thornton
VP Engineering, AeroDyne Systems
Aerospace“The mold for our PEEK housing was delivered in 6 weeks with full FAI documentation — 43 critical dimensions, all in spec. Zero rework on first article. That level of precision from a first run tells us the tooling and process control are solid.”
Dr. Sarah Kim
Director of Manufacturing, MedTech Instruments
Medical Devices“We needed 50K sensor housings per year with PPAP Level 3 documentation. Precision Edge delivered the 8-cavity mold on schedule and has maintained Cpk >1.67 across every production run for the past 12 months. They understand what automotive sourcing requires.”
James Park
Senior Sourcing Manager, AutoSense Technologies
AutomotiveQuality Systems
Certified to Your Industry Standards
These aren't just certificates on a wall — each certification means we meet the specific quality requirements your industry demands, with the documentation and process control to prove it.
ISO 9001:2015
Quality Management System
Ensures consistent processes, documented procedures, and continuous improvement across all operations.
ISO 13485
Medical Devices
Meets regulatory requirements for medical device production — full traceability, DHR, and risk management per 21 CFR 820.
AS9100D
Aerospace
Qualified supplier for aerospace and defense. FAI per AS9102, configuration management, and OTD tracking.
IATF 16949
Automotive
Meets automotive OEM requirements — PPAP, FMEA, SPC, MSA, and APQP support for production-stage sourcing.
Getting Started
How to Request a Quote
A complete technical package means a better quote, faster turnaround, and fewer surprises. Here's exactly what we need — and what happens after you send it.
What Happens After You Submit
Include in Your RFQ
3D CAD files (STEP preferred, IGES or native accepted)
Max 100MB per upload. ZIP archives accepted.
2D drawings with GD&T callouts and tolerance specifications
PDF preferred. DWG/DXF accepted.
Material specification (grade, temper, or trade name)
e.g., 7075-T6 per AMS-QQ-A-250/12.
Surface finish and treatment requirements
Include spec references (e.g., MIL-A-8625 Type III).
Quantity — prototype, low-volume, or production
Include annual forecast for tooling optimization.
Inspection requirements (FAI, CMM, PPAP level)
Specify if AS9102 FAI or PPAP Level 3 is required.
Required delivery date and shipping destination
Include Incoterms preference (EXW, FOB, DDP).
Pro Tips
Mark critical dimensions clearly — it focuses our inspection plan and ensures we measure what matters most to you.
Specify functional requirements over tight tolerances where possible — let us suggest the most cost-effective tolerance that meets your function.
Include any prior quality issues or known challenges — previous supplier problems help us set up the right process controls from the start.
Ask for DFM feedback early — it saves time and money. A 30-minute review before tooling starts can prevent weeks of rework later.
Ready to Get Started?
Send us your design. We'll return a detailed quote within 24 hours — with DFM feedback included. No commitment, no minimums.
Precision Edge Manufacturing
Shenzhen, Guangdong, China
